The WHOLEHOUSE FILTRATION SYSTEM





The whole house water filter unit is designed as a point-of-entry system that filters water directly as it enters a home plumbing system from a municipal or private well water source. While not as immediately effective as point-of-use water filters, like counter top/under the sink filters that filter water directly before use, the whole house water filter provides clean, filtered water to every water source in the household. Ideally, this type of filtration system is used in conjunction with point-of-use in order to ensure the removal of lead and other elements that corrode from pipes after water enters the home’s plumbing system.



For municipal water, the main purpose of installing wholehouse system is to remove sediment and chlorine. By removing chlorine and other harmful chemicals at the point-of-entry, whole house water filters not only provide cleaner, healthier water, but better air quality, as well. They prohibit chlorine from vaporizing in the air when used in the shower and dishwasher. Inhaling chlorine vapor is strongly correlated to the onset or aggravation of asthma and bronchitis. Whole house water filters also prevent harmful chemicals from embedding in clothing in the laundry, and they lessen the amount of detergent needed in both laundry and dishwashing.



We offer a wide selection of whole house water filters designed specifically to meet the higher water flow rates encountered on a home's main incoming water line. We offer basic systems designed to remove sediment, dirt, and rust particles, we also offer a complete range of whole house water filter packages for the removal of chlorine, chloramine, cysts, VOC's, Iron, Hydrogen Sulfide (rotten egg smell), certain heavy metals, etc. And in addition to that, we also have UV Systems which are designed specifically to sterilize water.



1. WHOLEHOUSE CARTRIDGE FILTER SYSTEMS
2. WHOLEHOUSE CARTRIDGE FILTER SYSTEMS WITH UV DISINFECTANT
3. WHOLEHOUSE AUTOMATIC BACKWASH
4. IRON REMOVAL
5. SOFTENER

Whole house cartridge filters are used primarily in residential applications for the removal of sediment as well as chlorine, chemicals, and treatment of bad taste and odor. Specialty cartridges for the removal of iron and other contaminants are also offered. These systems require regular maintenance consisting of replacing the filter cartridges.

Features:
The housing system:
• includes one/two/three large capacity 10” or 20” Big Blue housings with a 1 inch inlet/outlet for greater water filter cartridge capacity and higher flow rates with minimal pressure drop.
• includes wall-mounting bracket and hardware.
• has a pressure relief button to relieve housing pressure when replacing the water filter cartridges.
• Comes with pressure gauge to indicate when the filters need to be replaced.
• manufactured with durable polypropylene, have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.
Specification:
• Maximum Temperature: 100°F (37.8°C)
• Maximum Pressure: 90 psi (6.2 bar)
• Flow Rate* GPM (L/min): up to 40 gpm (151.4 L/min)



CAD $ 365.00 *
1st stage: Sediment Filter (Dual Gradient 25-01 micron)
• Reduces dirt, sand, silt, and rust particles.
• 25 micron outer layer, 1 micron inside layer sediment filter.
• 2 separate gradient density layers provide triple the dirt-holding capacity of similar sized filters.
2nd stage: Activated Carbon Filter
• Remove Chlorine, volatile organics compounds (VOC), bad taste and odor.

Replacement Cartridge:
1st stage: BB10-SPF2501
CAD $30.00 *

2nd stage: BB10-GAC
CAD $70.00 *

*Price subject to change due to currency exchange, please call to check pricing.



CAD $525.00 *
1st stage: Sediment Filter (Dual Gradient 25-01 micron)
• Reduces dirt, sand, silt, and rust particles.
• 25 micron outer layer, 1 micron inside layer sediment filter.
• 2 separate gradient density layers provide triple the dirt-holding capacity of similar sized filters.
2nd stage: Activated Carbon Filter
• Remove Chlorine, volatile organics compounds (VOC), bad taste and odor.



Replacement Cartridge:
1st stage: BB20-SPF2501
CAD $ 60.00 *



2nd stage: BB20-GAC
CAD $ 135.00 *

*Price subject to change due to currency exchange, please call to check pricing.

CAD$ $995.00 *
1st stage: Sediment Filter (Dual Gradient 25-01 micron)
• Reduces dirt, sand, silt, and rust particles.
• 25 micron outer layer, 1 micron inside layer sediment filter.
• 2 separate gradient density layers provide triple the dirt-holding capacity of similar sized filters.
2nd stage: Activated Carbon Filter
• Remove Chlorine, volatile organics compounds (VOC), bad taste and odor.
3rd stage: UV (Ultra Violet) Light EL720AK
• perfect solution for protection from Bacteria, (total coliform, fecal coliform and eColi, Crytosporidium, Giardia including their cysts).
• 304 Stainless Steel Construction
• 8GPM Flow rate, Pressure max:125PSI, 115V – 60HZ
• Light lifetime: 9000 hours or one year of continuous use



Replacement Cartridge:

1st stage: BB20-SPF2501
CAD$ 60.00 *



2nd stage: BB20-GAC
CAD$ 135.00 *



3rd stage: UV Replacement lamp (EL720L)
CAD$ 65.00 *

*Price subject to change due to currency exchange, please call to check pricing.





CAD $585.00 *
• Perfect solution for protection from Bacteria, (total coliform, fecal coliform and eColi, Crytosporidium, Giardia including their cysts).
• 304 Stainless Steel Construction
• 8GPM Flow rate,
• Pressure max:125PSI,
• 115V – 60HZ CSA Approved Transformer Included
• Light lifetime: 9000 hours or one year of continuous use
• Dimension: (inch) 48" In/Out Port size (NPT): 3/4"
• Easy to install, can be mounted horizontally or vertically
• End of lamp life indicator with 7 day override



Replacement Parts:

• Replacement lamp: El720L
CAD$ 65.00 *



• Replacement Quartz Sleeve: EL720Q
CAD$ 42.00 *



Replacement Ballasts:

• EL411B 420mV, 110V, 60 Hz
CAD$ 251.00 *



• EL411BS (with solenoid Output)
CAD$ 296.00 *

*Price subject to change due to currency exchange, please call to check pricing.

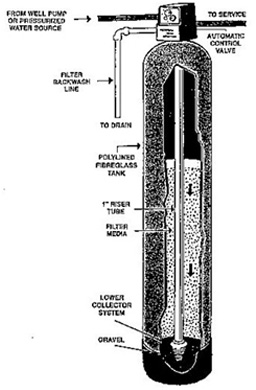

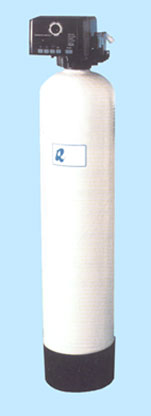

3.1. Sediment Removal
The multi-media is a highly efficient media for the removal of suspended matter. It has irregular surface characteristics affording maximum removal of suspended matter throughout the filter bed. This model removes the normal sediment down to the 20 – 40 micron range.
The system will backwash automatically at preset intervals to eliminate the accumulated suspended matter and regrade the filter bed.
There is no media to replace as the filter will last indefinitely.



FEATURES:
- Fully automatic 3 cycle noryl control
- Flapper (valve disc) design is the most reliable way to control water in filter applications because of static sealing and complete lack of problems with dirt in water
- Single Synchronous Electric Motor provides all the power for the program clock (timer) and the operation of the control
- No moving part in water stream means close tolerance dimensions are not subject to fouling
- Automatics backwash controller is incorporated in the system
- Fiber glass mineral tank
- High efficiency corrosion proof distributor system



MODEL: AF15A
CAD$ 990.00 *
Tank 10"x54" - CF Media 1.5
Normal/Peak Flow : 3.0 / 6.0 . Backwash Rate: 7.0



MODEL: AF20A

CAD$ 1115.00 *
Tank 12"x48" - CF Media 2.0
Normal/Peak Flow : 4.0 / 8.0 . Backwash Rate: 10.0

*Price subject to change due to currency exchange, please call to check pricing.



3.2 Carbon Removal
The activated carbon media with its extremely high surface area can absorb many times its weight of taste and odour due chiefly to the presence of various organic compounds and dissolved gases. This system will remove chlorine, organics, trihalometheses, trichlorsethylene, sediments and unpleasant taste and odour.
The system will backwash automatically at preset intervals to eliminate the accumulated suspended matter and regrade the filter bed.
It is necessary to replace the carbon filter bed when the capacity for taste and odour is exhausted.



FEATURES:
- Fully automatic 3 cycle noryl control
- Flapper (valve disc) design is the most reliable way to control water in filter applications because of static sealing and complete lack of problems with dirt in water
- Single Synchronous Electric Motor provides all the power for the program clock (timer) and the operation of the control
- No moving parts in water stream means close tolerance dimensions are not subject to fouling
- Automatics backwash controller is incorporated in the system
- Fiber glass mineral tank
- High efficiency corrosion proof distributor system



MODEL: CF15A
CAD$ 880.00 *
Tank 10"x54" - CF Media 1.5
Normal/Peak Flow : 3.0 / 6.0 . Backwash Rate: 5.0



MODEL: CF20A
CAD$ 1070.00 *
Tank 12"x48" - CF Media 2.0
Normal/Peak Flow : 4.0 / 8.0 . Backwash Rate: 7.0

*Price subject to change due to currency exchange, please call to check pricing.



Small amounts of iron are often found in water because of the large amount of iron present in the soil and because corrosive water will pick up iron from pipes. Clothing washed in water containing excessive iron may become stained a brownish color. The taste of beverages, such as tea and coffee, may also be affected by iron. Manganese produces a brownish color in laundered clothing, leaves black particles on fixtures and as with iron, affects the taste of beverages, including coffee and tea.



FEATURES:
• Fully automatic 5 cycle noryl control
• Flapper (valve disc) design is the most reliable way to control water in filter applications because of static sealing and complete lack of problems with dirt in water
• Single Synchronous Electric Motor provides all the power for the program clock (timer) and the operation of the control
• Program clock (timer) provides ‘guest regeneration’ capability
• No moving parts in water stream means close tolerance dimensions are not subject to fouling
• Automatics backwash controller is incorporated in the system
• Fiber glass mineral tank
• By-pass water automatically available during regeneration
• High efficiency corrosion proof distributor system
• Potassium Permanganate feeder assembly incorporates a non-pressurized storage tank and innovative grid design along with our dependable float valve



IRON, HYDROGEN SULFIDE AND MANGANESE REMOVAL FILTER SPECIFICATIONS



Greensand is formulated from a glauconite greensand which is capable of removing iron, manganese and hydrogen sulfide from water through oxidation and filtration. Soluble iron and manganese are oxidized and precipitated by contact with higher oxides of manganese on the greensand granules. The hydrogen sulfide is eliminated by oxidation to sulfate and an insoluble precipitate. Precipitates are then filtered and removed by backwashing.



CONDITIONS REQUIRED FOR PROPER USE



• pH range: 6.5 or higher
• Iron (Fe) up to 15 ppm.
• Manganese up to 15 ppm.
• Hydrogen Sulfide (H2S) up to 5 ppm.
• Temperature up to 100ºF
• No harmful effects from chlorine feed
• Backwash with potassium permanganate, 2 to 6 oz. per cubic foot of mineral bed, when sulfur odor reoccurs.



MG10A 1.0 CF Greensand-Almond
Tank size: 10x47 - Normal/Peak Flow: 2.5/5.0 - BW Rate: 5
CAD$ 1,240.00 *

MG15A 1.5 CF Greensand-Almond
Tank size: 10x54 - Normal/Peak Flow: 3.0/6.0 - BW Rate: 7
CAD$ 1,355.00 *

MG20A 2.0 CF Greensand-Almond
Tank size: 12x48 - Normal/Peak Flow: 5.0/8.0 - BW Rate: 10
CAD$ 1,520.00 *

*Price subject to change due to currency exchange, please call to check pricing.

Do you have hard water? A WATER SOFTENER may be the right answer for you
Things you need to know related to water softener:
What is hard water? (FAQ)



The idea behind a water softener is simple. The calcium and magnesium ions in the water are replaced with sodium ions. Since sodium does not precipitate out in pipes or react badly with soap, both of the problems of hard water are eliminated. To do the ion replacement, the water in the house runs through a bed of small plastic beads or through a chemical matrix called zeolite. The beads or zeolite are covered with sodium ions. As the water flows past the sodium ions, they swap places with the calcium and magnesium ions. Eventually, the beads or zeolite contain nothing but calcium and magnesium and no sodium, and at this point they stop softening the water. It is then time to regenerate the beads or zeolite.



Regeneration involves soaking the beads or zeolite in a stream of sodium ions. Salt is sodium chloride, so the water softener mixes up a very strong brine solution and flushes it through the zeolite or beads (this is why you load up a water softener with salt). The strong brine displaces all of the calcium and magnesium that has built up in the zeolite or beads and replaces it again with sodium. The remaining brine plus all of the calcium and magnesium is flushed out through a drain pipe.



Savings are immediate:
- You will use less soap
- Prevent corrosion and costly damage to plumbing and fixture
- Clothes will be brighter and last longer
- Removes low levels of Iron and Manganese (less than 2 PPM)



What size of softener do you need for your home?
(A water analyses should always be performed to help determine correct type and size)



                example
Hardness =
25

Manganese x 10 =
1

Iron x 5 =
5

Total Equivalent Hardness (TEH) =
31

Number of People in the house =
4

TEH x # of People x 240 = 31x4x240 = 29,760
Size of Softener required =
A30

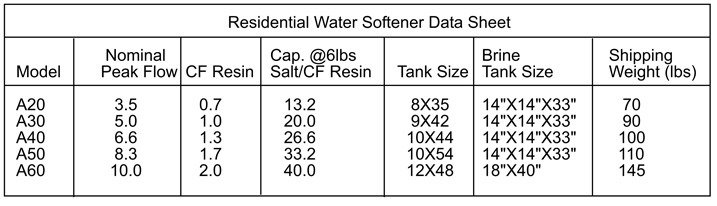

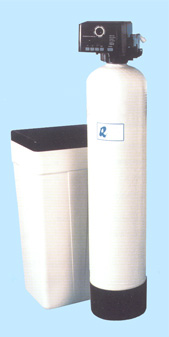

Our water softener includes brine tank, brine well and pick-up tube and featuring GE Autotrol LOGIX Controls.



With GE Autotrol 740 Time Clock Controller
Including Manifold Kit & bypass-ball valve-3/4” copper



A20/740 20K Grain Softener, 740 Timer
CAD$ 870.00 *



A30/740 30K Grain Softener, 740 Timer
CAD$ 920.00 *



A45/740 45K Grain Softener, 740 Timer
CAD$ 1010.00 *



A50/740 50K Grain Softener, 740 Timer
CAD$ 1125.00 *



A60/740 60K Grain Softener, 740 Timer
CAD$ 1325.00 *



With GE Autotrol 760 Metered Controller
Including Manifold Kit & bypass-ball valve-3/4” copper



A20/760 20K Grain Softener, 760 Meter
CAD$ 1050.00 *



A30/760 30K Grain Softener, 760 Meter
CAD$ 1100.00 *



A45/760 45K Grain Softener, 760 Meter
CAD$ 1180.00 *



A50/760 50K Grain Softener, 760 Meter
CAD$ 1240.00 *



A60/760 60K Grain Softener, 760 Meter
CAD$ 1425.00 *

*Price subject to change due to currency exchange, please call to check pricing.
